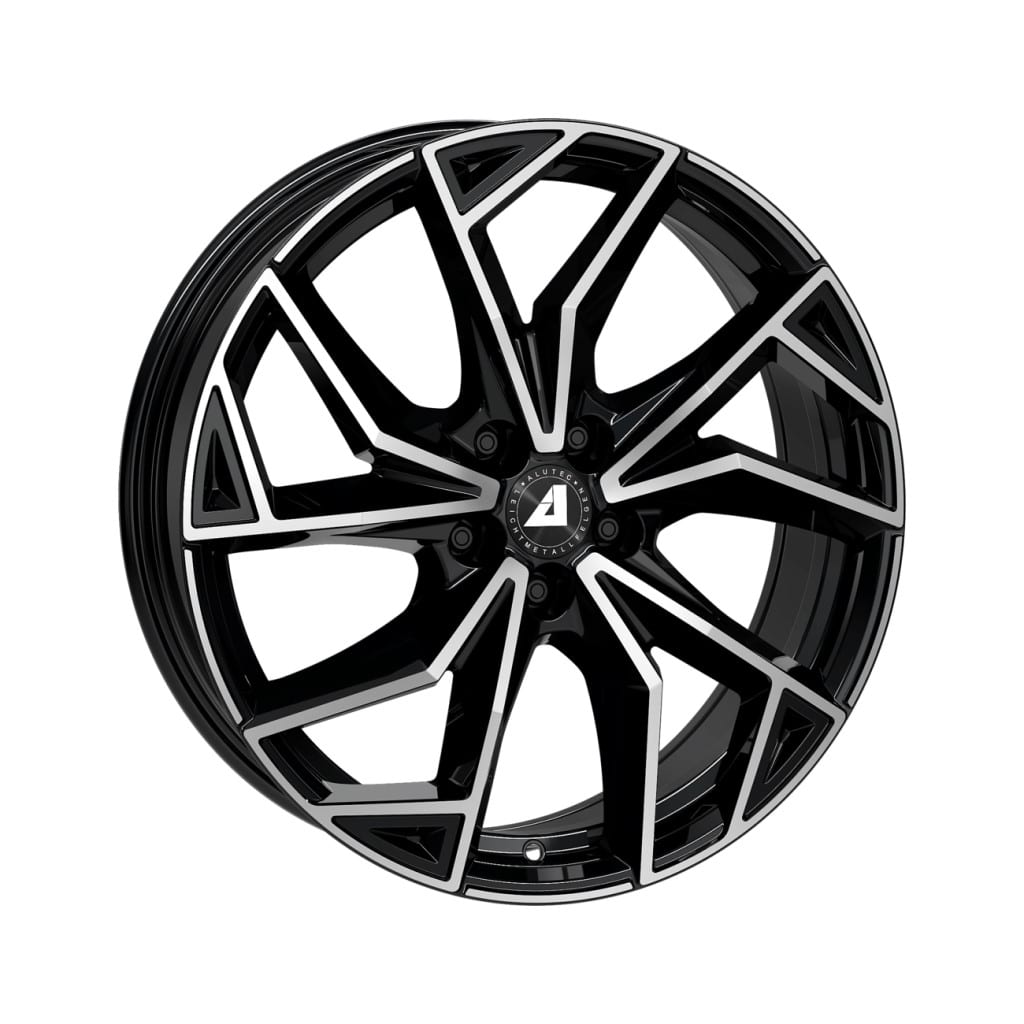

Alutec ADX.02 Diamond Black Polished Face 17″, 18″, 19″, 20″

Alutec ADX.02 Diamond Black Polished angle alloy wheel

£562.50 – £1,033.33

Alutec ADX.02 Diamond Black Polished Face 17, 18, 19  and 20-inch alloy wheels (Set of 4 wheels).

Comes in 17×7″, 18×7.5″, 19×8″, 20×8″ and 20×9″ sizes.

This wheel is available staggered (wider rear) and is also available in various other finishes.

These wheels are load rated so may be suitable for lighter commercial applications.

This alloy wheel is a split/Y-spoke or 10-spoke directional design alloy wheel.

Alutec ADX.02 Diamond Black Polished Face comes in fitments for most 4 and 5-stud vehicles.

— OR  —

— OR  —

Alutec ADX.02 Diamond Black Polished Face 17″, 18″, 19″, 20″

SKU ALUTADX02GBPF17181920 Categories , , , , , , , , , , , , , , Tags , , , , , , , , , ,

Related products

Description

Alutec ADX.02 Diamond Black Polished Face 17, 18, 19  and 20-inch alloy wheels (Set of 4 wheels).

Comes in 17×7″, 18×7.5″, 19×8″, 20×8″ and 20×9″ sizes.

This wheel is available staggered (wider rear) and is also available in various other finishes.

These wheels are load rated so may be suitable for lighter commercial applications.

This alloy wheel is a split/Y-spoke or 10-spoke directional design alloy wheel.

Alutec ADX.02 Diamond Black Polished Face comes in fitments for most 4 and 5-stud vehicles.

If you would like If you would like If you wish to add tyres to these wheels as a package, contact us for fitted tyre pricing, we can send a second invoice for the tyres, (tyre prices can change daily). To find out your wheel stud or lug fitment, please see our Alloy Wheel Fitment Guide.

This alloy wheel is available in the following fitments:

  Wheel Size PCD Offset Centre Bore Load Rating
1 17×7″ 5×100 ET38 57.1mm
2 17×7″ 5×100 ET48 57.1mm
3 17×7″ 5×108 ET42 65.1mm
4 17×7″ 5×112 ET40 57.1mm
5 17×7″ 5×114.3 ET50 67.1mm
6 18×7.5” 4×100 ET38 54.1mm-114mm 635kg
7 18×7.5” 4×100 ET45 54.1mm-114mm 635kg
8 18×7.5” 4×108 ET18 54.1mm-114mm 655kg
9 18×7.5” 4×108 ET32 54.1mm-114mm 655kg
10 18×7.5” 4×108 ET45 54.1mm-114mm 635kg
11 18×7.5” 5×100 ET46 54.1mm-114mm
12 18×7.5” 5×108 ET48 54.1mm-114mm 750kg
13 18×7.5” 5×112 ET45 54.1mm-114mm 750kg
14 18×7.5” 5×112 ET50 54.1mm-114mm 750kg
15 18×7.5” 5×114.3 ET40 54.1mm-114mm 650kg
16 18×7.5” 5×114.3 ET50 54.1mm-114mm 750kg
17 19×8” 5×100 ET40 54.1mm-114mm 600kg
18 19×8” 5×108 ET48 54.1mm-114mm 750kg
19 19×8” 5×112 ET40 54.1mm-114mm 810kg
20 19×8” 5×112 ET48 54.1mm-114mm 750kg
21 19×8” 5×114.3 ET42 54.1mm-114mm 750kg
22 19×8” 5×114.3 ET50 54.1mm-114mm 735kg
23 20×8” 5×108 ET45 63.4mm
24 20×8” 5×112 ET40 57.1mm
25 20×8” 5×112 ET45 57.1mm
26 20×8” 5×112 ET50 70.1mm
27 20×8” 5×114.3 ET48 67.1mm
28 20×9” 5×108 ET38 70.1mm
29 20×9” 5×108 ET50 63.4mm
30 20×9” 5×112 ET24 66.6mm
31 20×9” 5×112 ET35 70.1mm
32 20×9” 5×112 ET42 57.1mm

You may use a different offset to the o.e.m standard wheel, (for example to create a wider track).

Some vehicles may need wheel spacers and arch mods for fitment, please check before ordering.

Please Note The Alutec ADX.02 Diamond Black Polished Face comes as various fitments from the factory (European Stock) and needs custom drilling to your fitment. Allow around 10 working days for delivery.

Please note: This alloy wheel comes with a fitting kit which includes spigots for smaller centre-bore vehicles. We also include Nuts or Bolts if the current ones are also no longer suitable.

For any further info on Alutec wheels including images of wheels on different vehicles, you can visit the Alutec Website.

Additional information

Choose Wheel Size and Fitment

17×7" 5×100 ET38 57.1mm, 17×7" 5×100 ET48 57.1mm, 17×7" 5×108 ET42 65.1mm, 17×7" 5×112 ET40 57.1mm, 17×7" 5×114.3 ET50 67.1mm, 18×7.5” 4×100 ET38 54.1mm-114mm 635kg, 18×7.5” 4×100 ET45 54.1mm-114mm 635kg, 18×7.5” 4×108 ET18 54.1mm-114mm 655kg, 18×7.5” 4×108 ET32 54.1mm-114mm 655kg, 18×7.5” 4×108 ET45 54.1mm-114mm 635kg, 18×7.5” 5×100 ET46 54.1mm-114mm, 18×7.5” 5×108 ET48 54.1mm-114mm 750kg, 18×7.5” 5×112 ET45 54.1mm-114mm 750kg, 18×7.5” 5×112 ET50 54.1mm-114mm 750kg, 18×7.5” 5×114.3 ET40 54.1mm-114mm 650kg, 18×7.5” 5×114.3 ET50 54.1mm-114mm 750kg, 19×8” 5×100 ET40 54.1mm-114mm 600kg, 19×8” 5×108 ET48 54.1mm-114mm 750kg, 19×8” 5×112 ET40 54.1mm-114mm 810kg, 19×8” 5×112 ET48 54.1mm-114mm 750kg, 19×8” 5×114.3 ET42 54.1mm-114mm 750kg, 19×8” 5×114.3 ET50 54.1mm-114mm 735kg, 20×8” 5×108 ET45 63.4mm, 20×8” 5×112 ET40 57.1mm, 20×8” 5×112 ET45 57.1mm, 20×8” 5×112 ET50 70.1mm, 20×8” 5×114.3 ET48 67.1mm, 20×9” 5×108 ET38 70.1mm, 20×9” 5×108 ET50 63.4mm, 20×9” 5×112 ET24 66.6mm, 20×9” 5×112 ET35 70.1mm, 20×9” 5×112 ET42 57.1mm
