Description

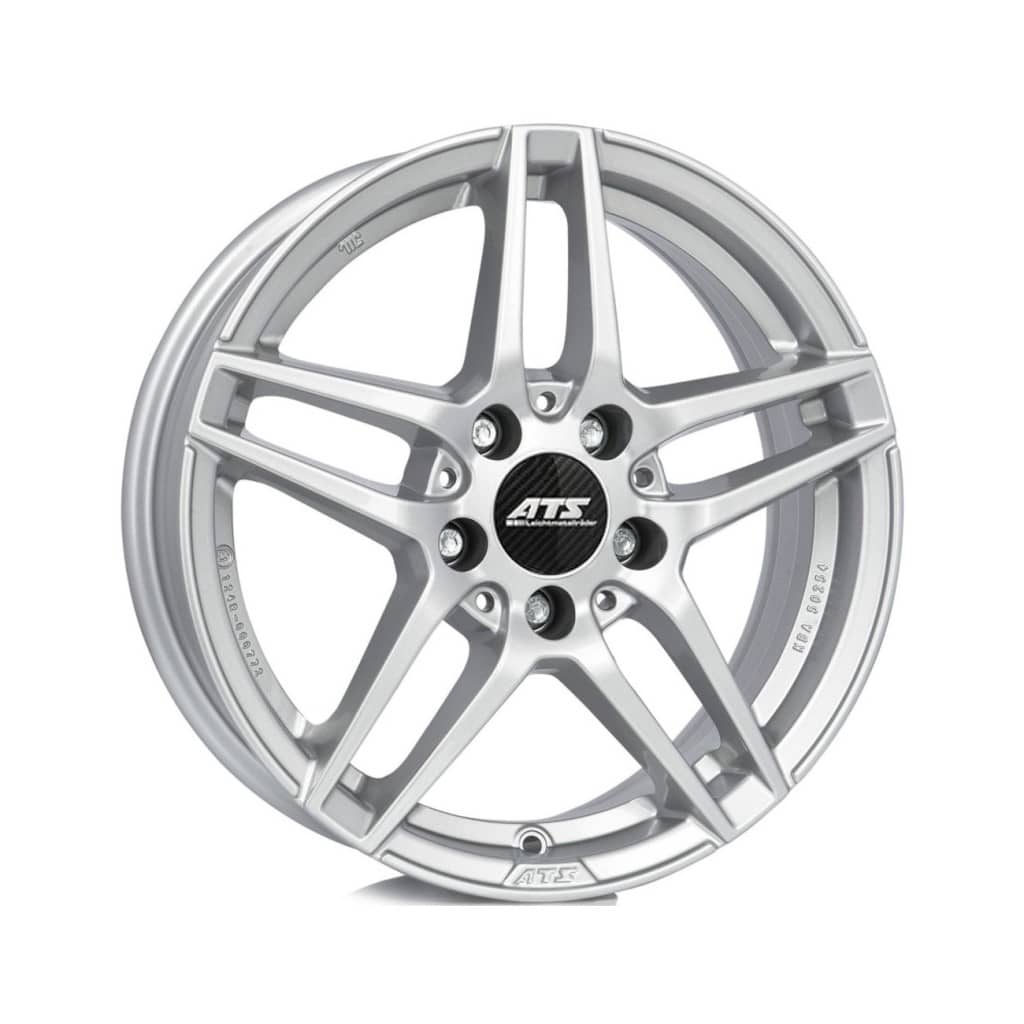

ATS Mizar Polar Silver 16″, 17″, 18″, 19″, 20″ and 21-inch alloy wheels (Set of 4 wheels).
Comes in 16×6.5″, 16×7″, 17×6.5″, 17×7″, 17×7.5″, 17×8″, 18×8″, 18×8.5″, 19×8″, 19×8.5″, 20×8.5″, 21×9″, 21×10″ sizes.
This wheel is available staggered (wider rear) and is also available in various other finishes.
These wheels are load rated so may be suitable for various commercial applications.
This alloy wheel is a split 5-spoke or 10-spoke design alloy wheel.
ATS Mizar Polar Silver comes in fitments for most 5 stud vehicles.
If you would like If you would like If you wish to add tyres to these wheels as a package, contact us for fitted tyre pricing, we can send a second invoice for the tyres, (tyre prices can change daily). To find out your wheel stud or lug fitment, please see our Alloy Wheel Fitment Guide.
This alloy wheel is available in the following fitments:
Wheel Size | PCD | Offset | Centre Bore | Load Rating | |
1 | 16×6.5″ | 5×112 | ET44 | 66.5mm-110mm | 650kg |
2 | 16×6.5″ | 5×112 | ET49 | 66.5mm-110mm | 560kg |
3 | 16×7.5” | 5×112 | ET49 | 66.5mm-110mm | 790kg |
4 | 17×6.5” | 5×112 | ET38 | 66.5mm-110mm | 750kg |
5 | 17×6.5” | 5×112 | ET44 | 66.5mm-110mm | 580kg |
6 | 17×6.5” | 5×112 | ET49 | 66.5mm-110mm | 750kg |
7 | 17×7″ | 5×112 | ET44 | 66.5mm-110mm | 725kg |
8 | 17×7″ | 5×112 | ET48 | 66.5mm-110mm | 725kg |
9 | 17×7.5″ | 5×112 | ET36 | 66.5mm-110mm | 790kg |
10 | 17×7.5″ | 5×112 | ET40 | 66.5mm-110mm | 790kg |
11 | 17×7.5″ | 5×112 | ET47 | 66.5mm-110mm | 790kg |
12 | 17×7.5″ | 5×112 | ET52 | 66.5mm-110mm | 680kg |
13 | 17×8” | 5×112 | ET48 | 66.5mm-110mm | 790kg |
14 | 18×8” | 5×112 | ET38 | 66.5mm-110mm | 790kg |
15 | 18×8” | 5×112 | ET43 | 66.5mm-110mm | 800kg |
16 | 18×8” | 5×112 | ET48 | 66.5mm-110mm | 790kg |
17 | 18×8.5” | 5×112 | ET34 | 66.5mm-110mm | 790kg |
18 | 18×8.5” | 5×112 | ET48 | 66.5mm-110mm | 790kg |
19 | 19×8” | 5×112 | ET38 | 66.5mm-110mm | 890kg |
20 | 19×8” | 5×112 | ET43 | 66.5mm-110mm | 890kg |
21 | 19×8” | 5×112 | ET48 | 66.5mm-110mm | 890kg |
22 | 19×8” | 5×112 | ET52 | 66.5mm-110mm | 890kg |
23 | 19×8.5” | 5×112 | ET34 | 66.5mm-110mm | 800kg |
24 | 19×8.5” | 5×112 | ET62 | 66.5mm-110mm | 1000kg |
25 | 20×8.5” | 5×112 | ET40 | 66.5mm-110mm | 1000kg |
26 | 20×8.5” | 5×112 | ET53 | 66.5mm-110mm | 1000kg |
27 | 20×8.5” | 5×112 | ET62 | 66.5mm-110mm | 1000kg |
28 | 21×9” | 5×112 | ET53 | 66.5mm-110mm | 1000kg |
29 | 21×10” | 5×112 | ET55 | 66.5mm-110mm | 1000kg |
These wheels include TUV approval and also load ratings (see the ATS configurator here if you need info or a certificate).
Fitments not stated above may be available on these wheels using spacer adaptors or vari-bolts, (please email us if unsure about this).
The offset of the ATS Mizar Polar Silver varies, see the table above.
This alloy wheel has various load ratings, please see the table above.
For Centre Bore size also please see variations. (any car smaller than this will fit the centre bore).
This wheel comes with the ATS 5-year warranty and is also suitable for winter use.
You may use a different offset to the o.e.m standard wheel, (for example to create a wider track).
Some vehicles may need wheel spacers and arch mods for fitment, please check before ordering.
Please Note The ATS Mizar Polar Silver comes from European Stock) and may need the centre hub custom machining to your fitment. Allow around 10 working days for delivery.
Please note: This alloy wheel comes with a fitting kit which includes spigots for smaller centre bore vehicles. We also include Nuts or Bolts if the current ones are also no longer suitable.
For any further info on ATS wheels including images of wheels on different vehicles, you can visit the ATS Website.
