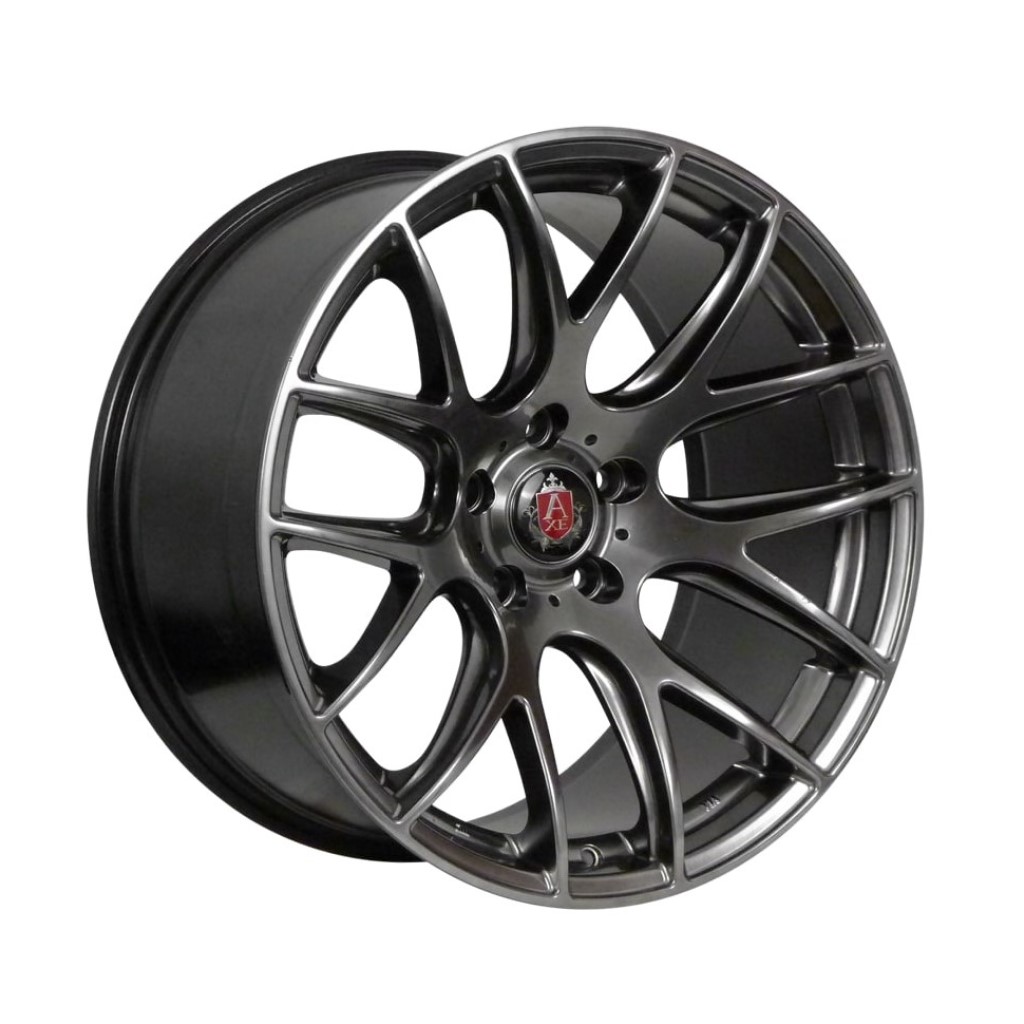

Axe CS-Lite Hyper Black 18″, 19″, 20″
£533.33 – £854.17
Axe CS-Lite Hyper Black 18, 19 and 20-inch alloy wheels (Set of 4 wheels)
18×8.5″, 18×9.5″, 19×8.5″, 19×9.5″ and 20×8.5″ sizes available.
This alloy wheel is available in the same size all-around or staggered fitment (Wider rear) and is also available in 3 other finishes.
This is a strong, load-rated, Y-spoke alloy wheel.
Axe CS-Lite Hyper Black comes in fitment for most 5 stud vehicles.
Axe CS-Lite Hyper Black 18″, 19″, 20″
Related products
-
Axe AT7 Satin Black 20″
£1,008.33 Add to basketQuick View -
Dirt A.T D01 Matt Black Chrome Inserts 18″, 20″
£741.67 – £908.33 Select optionsQuick View -
BBS Super RS Gold (Forged Split Rim) (Set of 4) 19″, 20″
£4,909.08 – £5,340.64 Select optionsQuick View -
Supermetal Trident Matt Black Polished Rim 20″
£683.33 Select optionsQuick View
Description
Axe CS-Lite Hyper Black 18, 19 and 20-inch alloy wheels (Set of 4 wheels)
18×8.5″, 18×9.5″, 19×8.5″, 19×9.5″ and 20×8.5″ sizes available.
This alloy wheel is available in the same size all-around or staggered fitment (Wider rear) and is also available in 3 other finishes.
This is a strong, load-rated, Y-spoke alloy wheel.
Axe CS-Lite Hyper Black comes in fitment for most 5 stud vehicles.
To find out your wheel stud/lug fitment have a look at our Alloy Wheel Fitment Guide.
Specifications including load ratings for this alloy wheel are as follows:
| Wheel Size | PCD | Offset | Centre Bore | Load Rating | |
| 1 | 18×8.5” | 5×108-5×120.6 | ET40 | 72.6mm | 700kg |
| 2 | 18×8.5” | 5×112 | ET45 | 72.6mm | 700kg |
| 3 | 18×8.5” | 5×120 | ET35 | 72.6mm | 700kg |
| 4 | 18×9.5” | 5×108-5×120.6 | ET40 | 72.6mm | 700kg |
| 5 | 19×8.5” | 5×108-5×120.6 | ET20 | 72.6mm | 750kg |
| 6 | 19×9.5” | 5×108-5×120.6 | ET27 | 72.6mm | 750kg |
| 7 | 19×8.5” | 5×108-5×120.6 | ET40 | 72.6mm | 750kg |
| 8 | 19×9.5” | 5×108-5×120.6 | ET40 | 72.6mm | 750kg |
| 9 | 20×8.5 | 5×112 | ET35 | 72.6mm | 850kg |
| 10 | 20×8.5 | 5×114.3 | ET35 | 72.6mm | 850kg |
| 11 | 20×8.5 | 5×120 | ET35 | 72.6mm | 850kg |
| 12 | 20×8.5” | 5×108-5×120.6 | ET40 | 72.6mm | 850kg |
The Axe CS-Lite Hyper Black is load rated to 700kg (18-inch), 750kg (19-inch) and 850kg (20-inch) per wheel.
Centre bore sizes as per above. (Any car smaller than this will fit the centre bore).
Fitments not mentioned above may also be available on these wheels using spacer adaptors or vari-bolts.
State required offset when ordering where there is a choice. (Please email us if unsure about this).
You may use a different offset to the manufacturer’s standard wheel, (for example to create a wider track).
Some vehicles may require wheel spacers and arch modifications for fitment, please check before ordering.
Please note: The Axe CS-Lite Hyper Black will come with a fitting kit free of charge. This applies if the wheel can’t directly fit the centre bore and also if current nuts or bolts are no longer suitable.
Please Note: These wheels come as a blank centre from the factory, and need custom drilling to your fitment. Delivery will more than likely be 1-3 days extra.
For any further information on Axe wheels including images of wheels on different vehicles, you can visit the Axe Facebook page.
Additional information
| Select Size | 18×8.5" All Round, 18×8.5" Front, 18×9.5" Rear, 18×9.5" All Round, 19×8.5" All Round (clearance – brand new), 19×8.5" All Round, 19×8.5" Front, 19×9.5" Rear, 19×9.5" All Round, 20×8.5" All Round, 20×8.5" Front, 20×10" Rear, 20×10" All Round |
|---|---|
| Wheel PCD Fitment | 5×108, 5×110, 5×112, 5×114.3, 5×115, 5×118, 5×120, 5×120.6 |
Size Chart
| Wheel Size | PCD | Offset | Centre Bore | Load Rating | |
| 1 | 18x8.5” | 5x108-5x120.6 | ET40 | 72.6mm | 700kg |
| 2 | 18x8.5” | 5x112 | ET45 | 72.6mm | 700kg |
| 3 | 18x8.5” | 5x120 | ET35 | 72.6mm | 700kg |
| 4 | 18x9.5” | 5x108-5x120.6 | ET40 | 72.6mm | 700kg |
| 5 | 19x8.5” | 5x108-5x120.6 | ET20 | 72.6mm | 750kg |
| 6 | 19x9.5” | 5x108-5x120.6 | ET27 | 72.6mm | 750kg |
| 7 | 19x8.5” | 5x108-5x120.6 | ET40 | 72.6mm | 750kg |
| 8 | 19x9.5” | 5x108-5x120.6 | ET40 | 72.6mm | 750kg |
| 9 | 20x8.5 | 5x112 | ET35 | 72.6mm | 850kg |
| 10 | 20x8.5 | 5x114.3 | ET35 | 72.6mm | 850kg |
| 11 | 20x8.5 | 5x120 | ET35 | 72.6mm | 850kg |
| 12 | 20x8.5” | 5x108-5x120.6 | ET40 | 72.6mm | 850kg |
