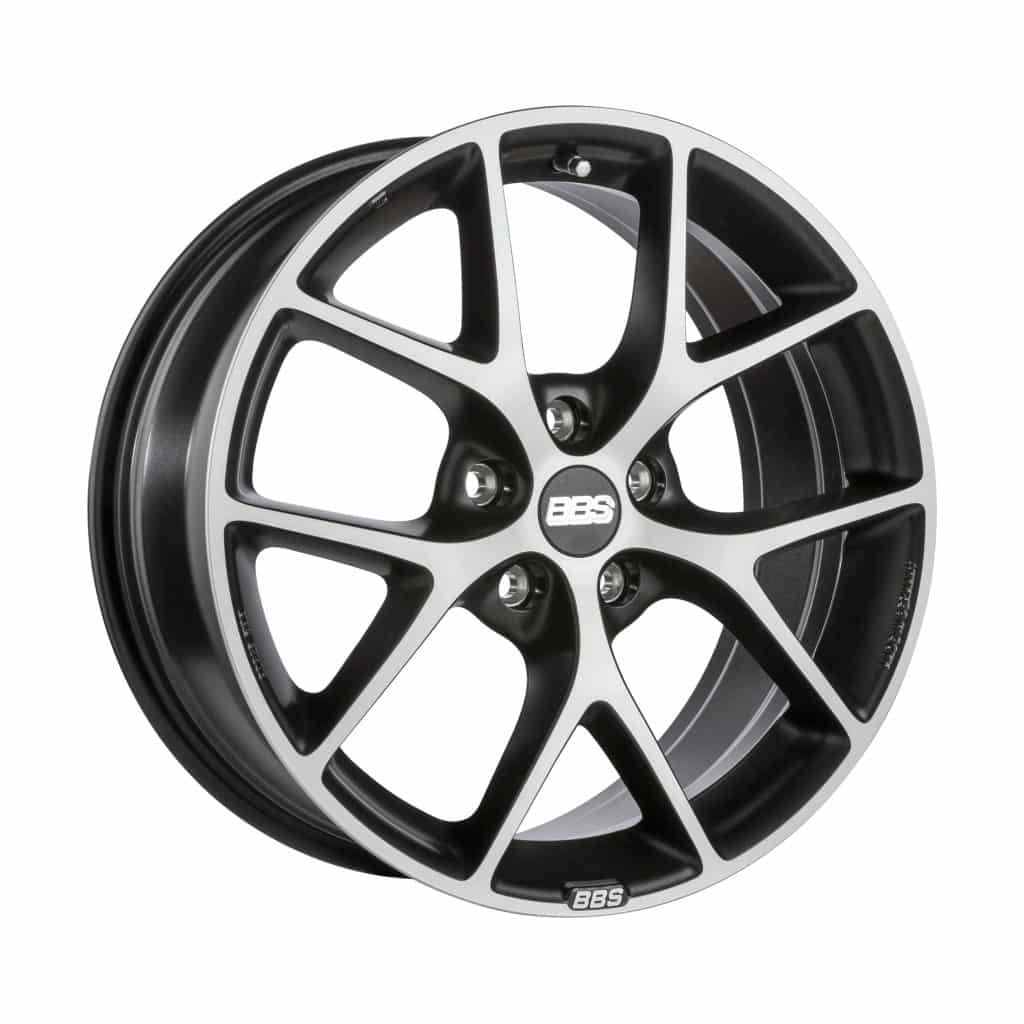

BBS SR Satin Volcano Grey Polished Face 17", 18", 19"

£420.00£640.00

BBS SR Satin Volcano Grey Polished Face 17, 18 and 19-inch alloy wheels (sold in pairs).

Available in 17×7.5″, 17×8″, 18×8″ and 19×8.5″ sizes.

Priced per pair to create your ideal same size or staggered width (wider rear) or diameter setup.

This is a strong, load rated, Y spoke alloy wheel.

Also known as Gunmetal Grey Polished, this wheel is available in 1 other colour finish.

The BBS SR Satin Volcano Grey Polished Face is available in fitments for most 5 stud vehicles.

Clear

Description

BBS SR Satin Volcano Grey Polished Face 17, 18 and 19-inch alloy wheels (sold in pairs).

Available in 17×7.5″, 17×8″, 18×8″ and 19×8.5″ sizes.

Priced per pair to create your ideal same size or staggered width (wider rear) or diameter setup.

This is a strong, load rated, Y spoke alloy wheel.

Also known as Gunmetal Grey Polished, this wheel is available in 1 other colour finish.

The BBS SR Satin Volcano Grey Polished Face is available in fitments for most 5 stud vehicles.

If you would like to find out your wheel stud or lug fitment please see our Alloy Wheel Fitment Guide.

Wheel Size PCD Offset Centre Bore Load Rating
1 17×7.5″ 5×100 ET37 70mm 610kg
2 17×7.5″ 5×100 ET48 70mm 610kg
3 17×7.5″ 5×108 ET45 70mm 720kg
4 17×7.5″ 5×112 ET35 82mm 750kg
5 17×7.5″ 5×112 ET45 82mm 750kg
6 17×7.5″ 5×114.3 ET42 82mm 750kg
7 17×7.5″ 5×115 ET40 70.3mm 700kg
8 17×7.5″ 5×120 ET35 82mm 750kg
9 17×8″ 5×112 ET42 82mm 750kg
10 17×8″ 5×120 ET30 72.6mm 750kg
11 18×8″ 5×100 ET36 70mm 610kg
12 18×8″ 5×100 ET48 70mm 610kg
13 18×8″ 5×108 ET42 70mm 750kg
14 18×8″ 5×112 ET30 82mm 795kg
15 18×8″ 5×112 ET35 82mm 780kg
16 18×8″ 5×112 ET45 82mm 750kg
17 18×8″ 5×112 ET52 82mm 680kg
18 18×8″ 5×114.3 ET40 82mm 780kg
19 18×8″ 5×114.3 ET50 82mm 600kg
20 18×8″ 5×115 ET36 70.3mm 680kg
21 18×8″ 5×120 ET32 82mm 830kg
22 18×8″ 5×120 ET44 82mm 745kg
23 18×10″ 5×130 ET41 71.6mm 645kg
24 19×8.5″ 5×108 ET45 70mm 750kg
25 19×8.5″ 5×112 ET32 82mm 780kg
26 19×8.5″ 5×112 ET46 82mm 750kg
27 19×8.5″ 5×114.3 ET35 82mm 780kg
28 19×8.5″ 5×114.3 ET45 82mm 750kg
29 19×8.5″ 5×120 ET32 82mm 800kg

Load rating of the BBS SR Satin Volcano Grey Polished Face, (which vary depending on application) is per wheel.

Fitments not mentioned above may also be available on these wheels using spacer adaptors or vari-bolts, (please email us if unsure about this).

You may use a different offset to the manufacturer standard wheel, (for example to create a wider track).

Some vehicles may require wheel spacers and arch modifications for fitment, please check before ordering.

Please note: the BBS SR Satin Himalaya Grey comes with a Fitting kit including spigots for smaller centre bore vehicles. Including nuts or bolts if current ones are also no longer suitable.

Please Note: These wheels are also originally supplied from the UK, Europe or if made to order Japan, (rare or high-value fitments). Delivery times can vary, please ask us for more information and we can get you an Expected Time of Arrival.

For any further information on BBS wheels including load ratings and TUV certification, you can visit the Official BBS Certificate Archive.

Additional information

Fitment Variation (price per pair)

17×7.5 5×100 ET37 Centre Bore 70.0 Load 610kg, 17×7.5 5×100 ET48 Centre Bore 70.0 Load 610kg, 17×7.5 5×108 ET45 Centre Bore 70.0 Load 720kg, 17×7.5 5×112 ET35 Centre Bore 82.0 Load 750kg, 17×7.5 5×112 ET45 Centre Bore 82.0 Load 750kg, 17×7.5 5×114.3 ET42 Centre Bore 82.0 Load 750kg, 17×7.5 5×115 ET40 Centre Bore 70.3 Load 700kg, 17×7.5 5×120 ET35 Centre Bore 82.0 Load 750kg, 17×8.0 5×112 ET42 Centre Bore 82.0 Load 750kg, 17×8.0 5×120 ET30 Centre Bore 72.6 Load 750kg, 18×8.0 5×100 ET36 Centre Bore 70.0 Load 610kg, 18×8.0 5×100 ET48 Centre Bore 70.0 Load 610kg, 18×8.0 5×108 ET42 Centre Bore 70.0 Load 610kg, 18×8.0 5×112 ET30 Centre Bore 82.0 Load 795kg, 18×8.0 5×112 ET35 Centre Bore 82.0 Load 780kg, 18×8.0 5×112 ET45 Centre Bore 82.0 Load 750kg, 18×8.0 5×114.3 ET40 Centre Bore 82.0 Load 780kg, 18×8.0 5×114.3 ET50 Centre Bore 82.0 Load 600kg, 18×8.0 5×115 ET36 Centre Bore 70.3 Load 680kg, 18×8.0 5×120 ET32 Centre Bore 82.0 Load 830kg, 18×8.0 5×120 ET44 Centre Bore 82.0 Load 745kg, 19×8.5 5×108 ET45 Centre Bore 70.0 Load 750kg, 19×8.5 5×112 ET32 Centre Bore 82.0 Load 780kg, 19×8.5 5×112 ET46 Centre Bore 82.0 Load 750kg, 19×8.5 5×114.3 ET35 Centre Bore 82.0 Load 780kg, 19×8.5 5×114.3 ET45 Centre Bore 82.0 Load 750kg, 19×8.5 5×120 ET32 Centre Bore 82.0 Load 800kg

Reviews

There are no reviews yet.

Be the first to review “BBS SR Satin Volcano Grey Polished Face 17″, 18″, 19″”

Your email address will not be published.

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Size Chart

Wheel Size PCD Offset Centre Bore Load Rating
1 17x7.5" 5x100 ET37 70mm 610kg
2 17x7.5" 5x100 ET48 70mm 610kg
3 17x7.5" 5x108 ET45 70mm 720kg
4 17x7.5" 5x112 ET35 82mm 750kg
5 17x7.5" 5x112 ET45 82mm 750kg
6 17x7.5" 5x114.3 ET42 82mm 750kg
7 17x7.5" 5x115 ET40 70.3mm 700kg
8 17x7.5" 5x120 ET35 82mm 750kg
9 17x8" 5x112 ET42 82mm 750kg
10 17x8" 5x120 ET30 72.6mm 750kg
11 18x8" 5x100 ET36 70mm 610kg
12 18x8" 5x100 ET48 70mm 610kg
13 18x8" 5x108 ET42 70mm 750kg
14 18x8" 5x112 ET30 82mm 795kg
15 18x8" 5x112 ET35 82mm 780kg
16 18x8" 5x112 ET45 82mm 750kg
17 18x8" 5x112 ET52 82mm 680kg
18 18x8" 5x114.3 ET40 82mm 780kg
19 18x8" 5x114.3 ET50 82mm 600kg
20 18x8" 5x115 ET36 70.3mm 680kg
21 18x8" 5x120 ET32 82mm 830kg
22 18x8" 5x120 ET44 82mm 745kg
23 18x10" 5x130 ET41 71.6mm 645kg
24 19x8.5" 5x108 ET45 70mm 750kg
25 19x8.5" 5x112 ET32 82mm 780kg
26 19x8.5" 5x112 ET46 82mm 750kg
27 19x8.5" 5x114.3 ET35 82mm 780kg
28 19x8.5" 5x114.3 ET45 82mm 750kg
29 19x8.5" 5x120 ET32 82mm 800kg
